| Connectors, Interconnects | |
| Connector Series | CA BAYONET (CA-B) |
| Connector Grade | - |
| Connector Qualification | - |
| Connector Style | Circular, Bayonet |
| Connector Type | - |
| Number of Positions (Ports) | 3 (Power) contacts size 12 |
| Shell Size - Insert | 16-10 |
| Shell Size, MIL | - |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Fastening Type | Reverse Bayonet Lock |
| Orientation | N (Normal) |
| Contact Finish/Plating | Silver |
| Contact Finish/Plating Thickness | - |
| Contact Termination Style | Solder Cup |
| Current Rating (Amps) | 41 A |
| Voltage Rating | - |
| Cable Opening | - |
| Primary Material | Metal |
| Housing/Shell Material | Aluminium alloy |
| Housing Color | Olive drab chromate over cadmium plating (conductive) |
| Material Flammability Rating | - |
| Features (connectors) | - |
| Technical Documents | |
| Link to Manufacturer's page | https://www.ittcannon.com/part-detail/?partnumber=ca3102e16-10p-b |
| Datasheets | |
| Application Notes | CA Bayonet Assembly and Wiring Instruction Guide |
| Package / Case | |
| Drawings, CAD-Models | https://www.ittcannon.com/file-download/?fileURL=https://utz-cannon-pricing.itt.com/mc/PdfDrawingGenerator/CA3102E16-10P-B_DWG.pdf |
| Operating Temperature | -55°C ~ 125°C |
| Packing | |
| Primary Packing | Bag |
| Primary Packing QTY | 1 |
| Environmental & Export | |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Shielding (EMC) | Unshielded |
| RoHS Status | RoHS non-compliant |
| ECCN | EAR99 / NLR |
| HTS Code | 8536699090 |
| Country Of Origin (COO) | Great Britain |
Please verify the characteristics of the product in manufacturer's datasheet in the "Technical Documents" section or on the manufacturer's website.

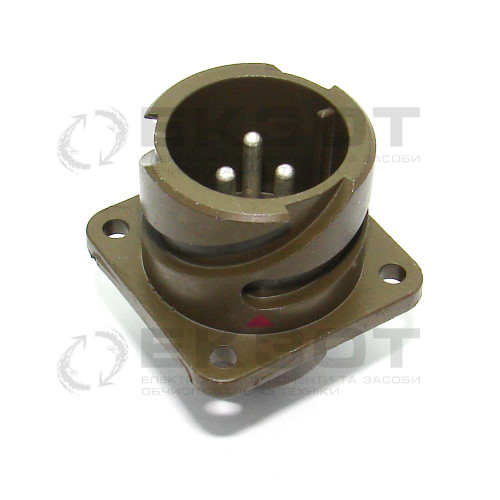

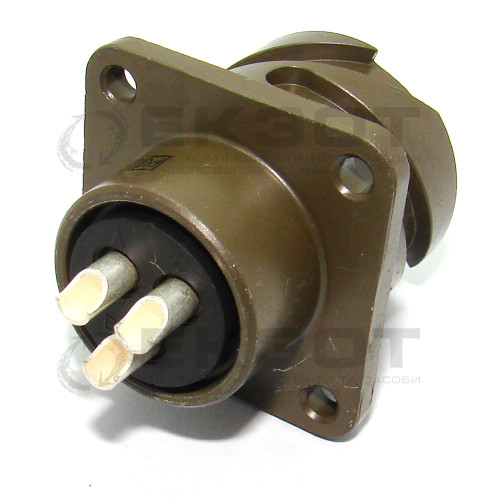

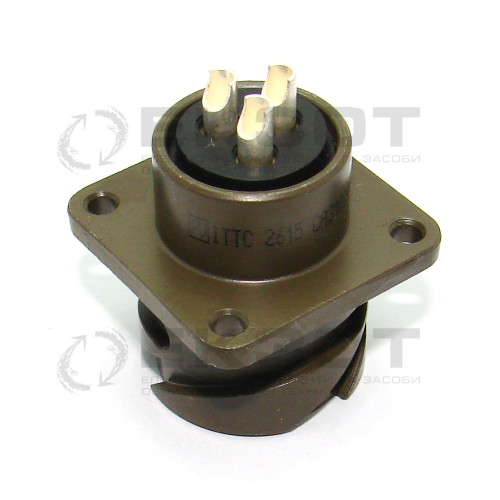

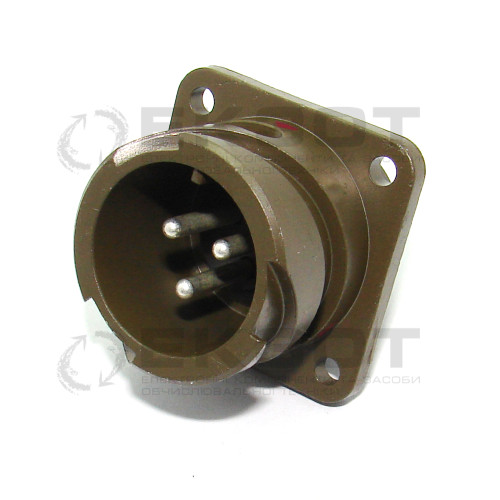

CA3102E16-10P-B (121090-0012)
- Brand: ITT Cannon
- Product Code: CA3102E16-10P-B (121090-0012)
- Availability: Out Of Stock
-
грн. 0.000
- Ex Tax: грн. 0.000
