| Product Lifecycle Status | |
| Lifecycle Status | Active |
| Connectors, Interconnects | |
| Connector Series | Greenpar |
| Connector Style | SMB |
| Connector Type | Jack Receptacle, Male Pin |
| Number of Positions (Ports) | 1 |
| Mounting Type | PCB Surface Mount |
| Mounting Feature | - |
| Fastening Type | Snap-On |
| Orientation | Straight |
| Center Contact Material | Brass |
| Contact Finish/Plating | Gold |
| Contact Finish/Plating Thickness | - |
| Contact Termination Style | Solder |
| Shield Termination Style | Solder |
| Impedance | 50 Ohms |
| Frequency - Max (GHz) | 4 GHz |
| Cable Group | - |
| Body Material | Brass |
| Body Finish Plating | Gold |
| Body Color | Gold |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Features (connectors) | - |
| Mating Cycles (Min) | 500 |
| Technical Documents | |
| Link to Manufacturer's page | |
| Package / Case | |
| Drawings, CAD-Models | SMB SURFACE MOUNT STRAIGHT PCB SOCKET 50 OHM CAD Files: 3D PDF |
| Operating Temperature | -65°C ~ 165°C |
| Moisture Sensitivity Level (MSL) | - |
| Packing | |
| Primary Packing | Bulk |
| Primary Packing QTY | 50 |
| Environmental & Export | |
| Ingress Protection | Not Rated |
| Shielding (EMC) | - |
| RoHS Status | EU RoHS Directive 2011/65/EU: Compliant with Exemptions Exemptions: 6(c) - Pb-Alloy in Copper |
| ECCN | EAR99 / NLR |
| HTS Code | 8536699090 |
| Country Of Origin (COO) | China (CN) |
| Date Code | - |
Please verify the characteristics of the product in manufacturer's datasheet in the "Technical Documents" section or on the manufacturer's website.

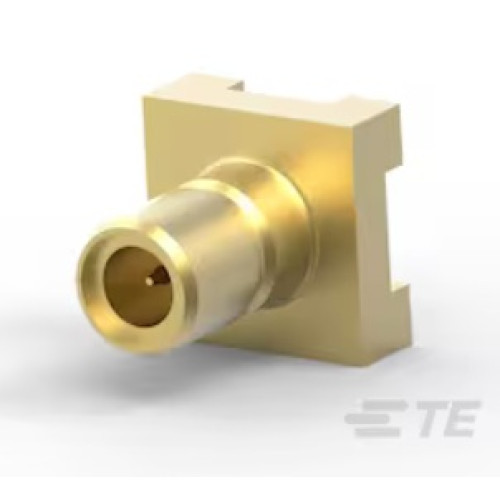

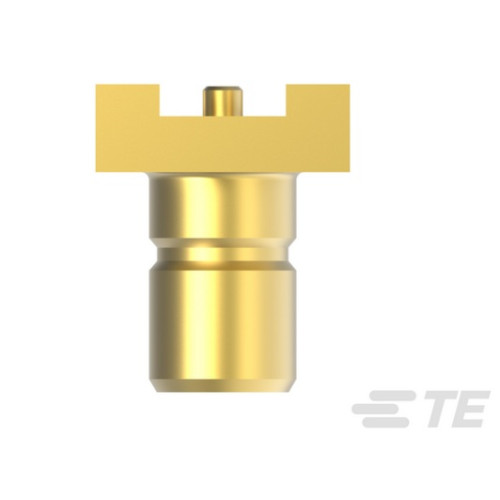

1-1337604-0
- Brand: TE Connectivity
- Product Code: 1-1337604-0
- Availability: Out Of Stock
-
грн. 0.000
- Ex Tax: грн. 0.000
