| Product Lifecycle Status | |||
| Lifecycle Status | Active | ||
| Substitutes | |||
| Base Product Number | BaseProductNumberCNLINKOBD24RJ45 | ||
| Connectors, Interconnects | |||
| Connector Series | BD-24 | ||
| Adapter Type | Coupler | ||
| Adapter Conversion Type | Same Series (In-Series) | ||
| Convert From (Adapter End) | RJ-45 Jack, 8P8C | ||
| Convert To (Adapter End) | RJ-45 Jack, 8P8C | ||
| Ratings | CAT.3 ~ CAT.6 | ||
| Mounting Type | Panel Mount | ||
| Mounting Feature | Flange | ||
| Fastening Type | Snap-fit | ||
| Housing/Shell Material | Metal (Zinc Alloy) | ||
| Housing Color | Silver | ||
| Mating Cycles (Min) | 500 | ||
| Technical Documents | |||
| Detailed description | Part Numbering Rules BD : Product series represented by two capital letters 24 : Product number J : Interface type = Female Pin/End (C = Male Pin/End, K = both Male and Female pins) RJ45 : Signal class 2 : Interface count = 2 Connectors (0 = Zero Connectors, 1 = 1 Connector) 1 : Waterproof (0 = Non-Waterproof) 3 : Straight-through type (0 = With PCB board, 1 = Housing(?), 2 = Opening upwards, 3 = , 4 = Opening downwards, 5 = With Rubber core/insert, 6 = Roller core with wire) SX : Connector Type = Receptacle (PE = Plug, PP = Floating connector) 4 : Wiring method = Other (0 = Soldering, 1 = Crimping, 2 = Screwing, 3 = Riveting) 3 : All Metal Material (1 = Plastic+Metal, 2 = All Plastic) 2 : Two-hole flange receptacle Special code (0 = Plug/Floating connector 1 = Single-hole straight receptacle, 4 = Four-hole flange receptacle) 07 : Streaming code : 01-99 / Distinction code : blank or A-Z |
||
| Link to Manufacturer's page | https://www.cnlinko.com/products/connectors/bd-24-rj45-signal-waterproof-connector.html |
||
| Package / Case | |||
| Drawings, CAD-Models | |||
| Operating Temperature | -40°C ~ 85°C | ||
| Packing | |||

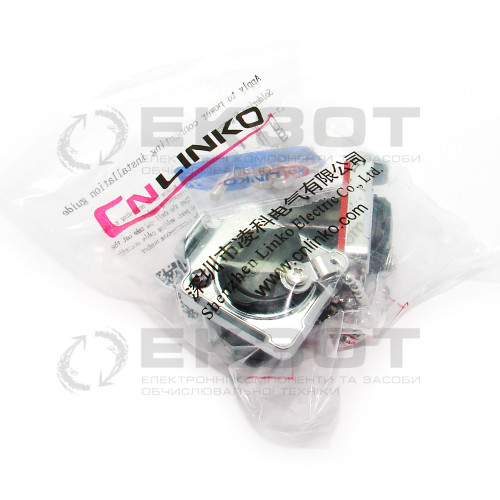

| Primary Packing | Bag | ||
| Primary Packing QTY | 2 | ||
| Environmental & Export | |||
| Ingress Protection | IP68 / IPX9K - Dust Tight, Waterproof | ||
| Shielding (EMC) | |||
| ECCN | EAR99 / NLR | ||
| HTS Code | 8536699090 | ||
| Country Of Origin (COO) | China (CN) | ||
| Date Code | DC 24+ | ||
Please verify the characteristics of the product in manufacturer's datasheet in the "Technical Documents" section or on the manufacturer's website.

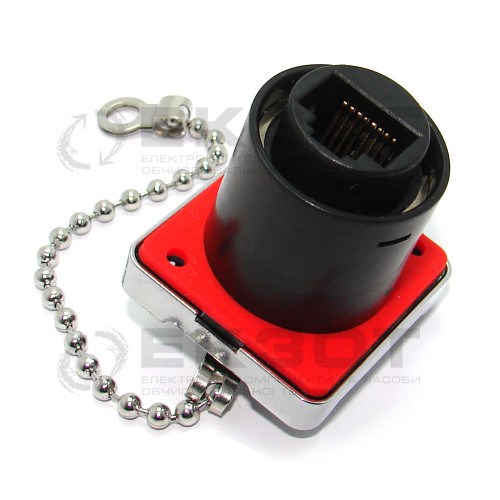

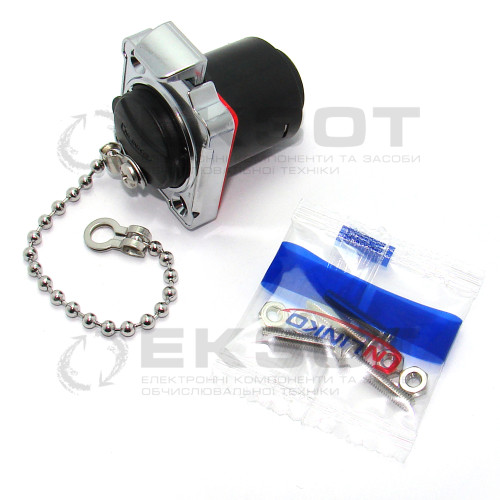

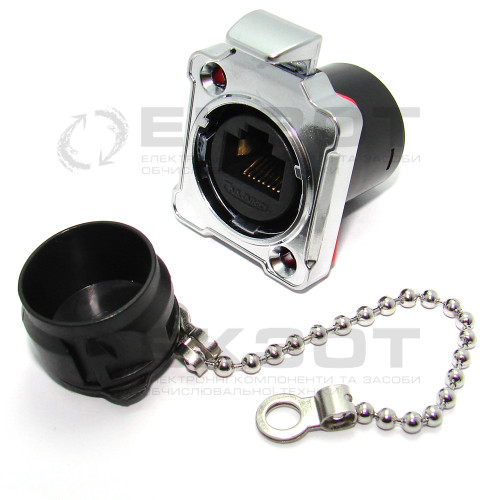

BD-24-J/RJ45/213/SX-43-207
- Brand: CNLINKO (Shenzhen Linko Electric)
- Product Code: BD-24-J/RJ45/213/SX-43-207
- Availability: 5
-
грн. 540.000
- Ex Tax: грн. 450.000
