Product Lifecycle Status
Lifecycle Status	Active
Base Product Number	Rugged Ethernet RJ45 connectors for harsh environments RJF Cat5e, Cat6, Cat6A
Connectors, Interconnects
Connector Series	RJF
Connector Type	Jack Receptacle, Female Socket
Ratings	Cat5e
Number of Ports	1
Number of Positions/Contacts	8P8C (Ethernet, RJ45)
Number of Rows	1
Mounting Type	Panel Mount
Mounting Feature	Flange
Fastening Type	Bayonet Lock
Orientation	Straight
Contact Termination Style	PC Board, Solder
Housing/Shell Material	Metal
Housing Color	Black
Mating Cycles (Min)	500
LED Color	Does Not Contain LED
Tab Direction	User Selectable
Technical Documents
Link to Manufacturer's page	https://www.amphenol-socapex.com/products/io-connectors/rugged-ethernet-usb-display-connectors/rjf-cat5e-cat6-cat6a?urlPartNumber=RJF22B00&urlPartId=10-07042020-090657
Datasheets	Catalog RJ Field (RJ45, RJFTV)
Product Change Notifications	2021/09/03 PCN #128986  Replacement of the white ink marking by laser marking on black anodized and black electrophoresis parts. 2017/03/30 PCN #120446  All RJF/RJFTV/USBFTV, USBBFTV & LCFTV connectors with black zinc cobalt plating will be replaced by black zinc nickel plating. 2010/03/10 PCN #115259  Compound material change for RJF, RJFTV, RJ11F potted receptacle
Package / Case
Operating Temperature	-40°C ~ 85°C
Packing
Primary Packing	Bag
Primary Packing QTY	1
Environmental & Export
Ingress Protection	IP68 - Dust Tight, Waterproof
Shielding (EMC)	Unshielded
ECCN	EAR99 / NLR
HTS Code	8536699090
Country Of Origin (COO)	India (IN)

Please verify the characteristics of the product in manufacturer's datasheet in the "Technical Documents" section or on the manufacturer's website.

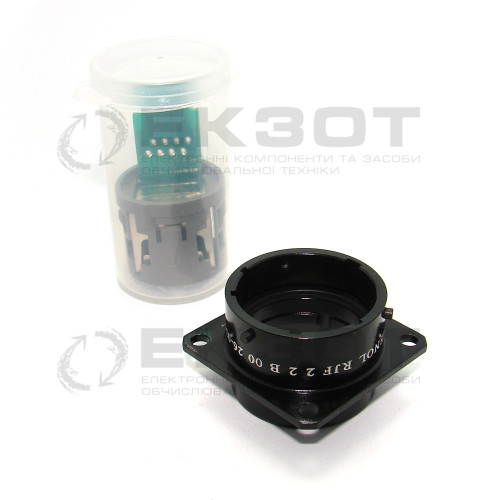

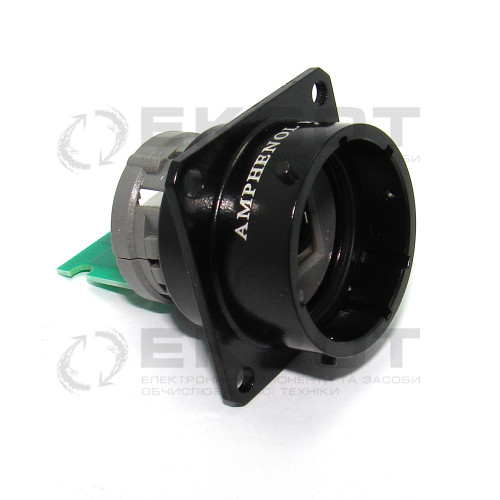

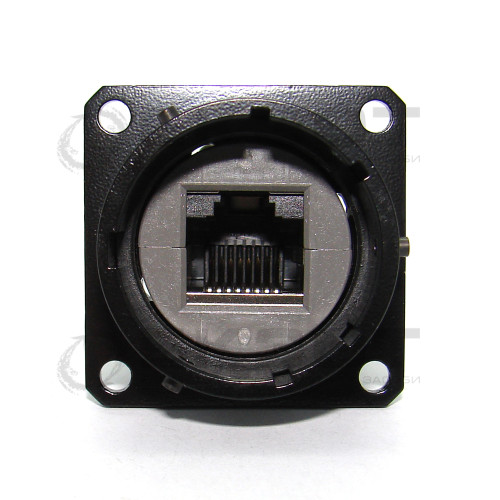

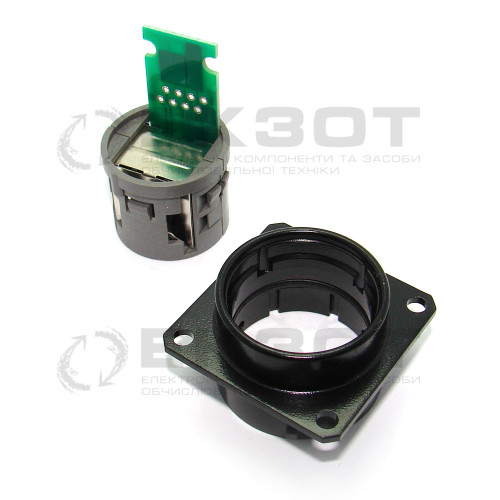

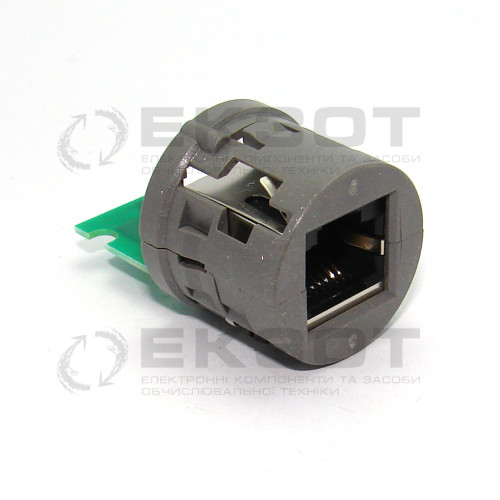

RJF22B00

• Brand: Amphenol Socapex
• Product Code: RJF22B00
• Availability: Out Of Stock
